Ball Valves Explained: Types, Functions, and Industrial Applications

Nilon Ball valves play a crucial role in managing fluid flow across various systems. These valves use a spherical component, or ball, to control the flow of liquids or gases, ensuring precision and efficiency. Nilon’s robust design makes us a key partner for Industrial Valves in industries like Petrochemicals, automotive, HVAC, construction, and energy.

Nilon valves reliability stems from features like tight seals, high-temperature resistance, and compatibility with diverse media. Available in various valve types, we offer unmatched versatility for flow control and safety in industrial applications.

Key Takeaways (Industrial Valve Solutions)

• Learn about ball valve types like floating, trunnion, and full-port.
• Pick a valve that matches materials and pressure for safety.
• Choose valves that are easy to maintain to save time and money.
• Use multi-port valves for mixing or redirecting flows in systems.
• Think ahead to avoid replacing valves too soon and ensure they last.

Floating Ball Valves

Design and Functionality

NILON Floating ball valves are a popular choice for flow control due to their unique design. Unlike other types of valves, the ball inside these valves is not fixed. Instead, it “floats” between the valve seats, allowing it to move slightly under fluid pressure. This movement enhances the seal on the downstream side, ensuring reliable performance.

Key features of Nilon floating ball valves include:

• Nilon floating ball design, which improves sealing by using fluid pressure to push the ball against the outlet seat.
• Suitability for low- to medium-pressure systems, making them ideal for various applications.
• Compact and simple construction, which reduces maintenance needs and increases durability.
• Nilon ball valves comes in 1” inch to 48” inch size with 150# to 2500# pressure rating

Our valves excel in systems where tight sealing and efficient flow control are essential. Nilon’s straightforward design ensures our valves performs to their functions effectively, even in challenging conditions.

Applications

Nilon Floating ball valves are versatile and widely used across industries. It is used in pipelines that transport gas, oil, chemical or water. Nilon valves ability to handle hot gases, corrosive fluids, and slurries makes them indispensable in sectors like power generation and mining.

Common applications include:

• Regulating flow in natural gas pipelines and water distribution systems.
• Managing the flow of corrosive fluids in chemical processing plants.
• Ensuring safety and efficiency in mining operations by controlling slurry movement.

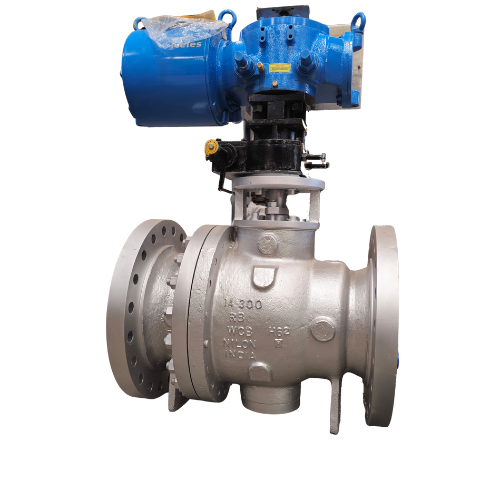

Trunnion-Mounted Ball Valves

Design and Functionality

Nilon’s Trunnion-mounted ball valves stand out due to their unique design. Unlike floating ball valves, these valves feature a ball that is anchored to a trunnion, a fixed shaft at the bottom. This design reduces friction during operation, making them easier to handle. Nilon trunnion mounted ball require less torque to operate, even in high-pressure systems.

Key structural differences between trunnion-mounted and floating ball valves include:

• The trunnion-mounted design supports the ball on a fixed shaft, while floating ball valves rely on fluid pressure to hold the ball in place.
• Trunnion-mounted valves use floating valve seats to enhance sealing under pressure.
• These valves are often welded to the stem, ensuring durability in demanding environments.

This design makes trunnion-mounted ball valves ideal for heavy-duty applications where precision and reliability are critical.

Applications

Nilon’s trunnion-mounted ball valves has ability to handle high pressure and large diameters makes them indispensable in several sectors.

Common applications include:

• High-pressure systems and large-diameter pipelines, especially in the oil and gas industry.
• Petrochemical facilities where leak-proof sealing is essential.
• Chemical manufacturing plants, thanks to their resilience to high temperatures and corrosive fluids.
• Power generation systems that require precise flow control.
• Nilon trunnion mounted ball valves are widely used in the petroleum industry.

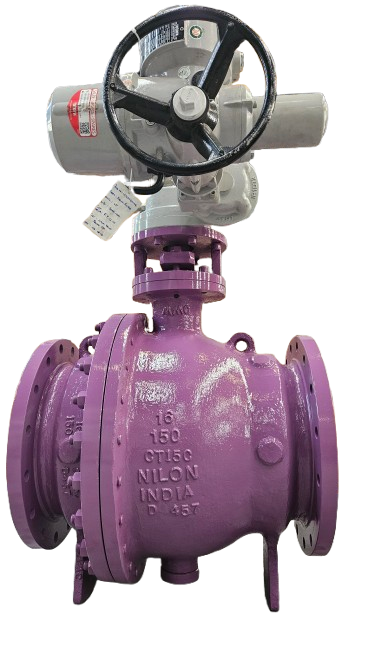

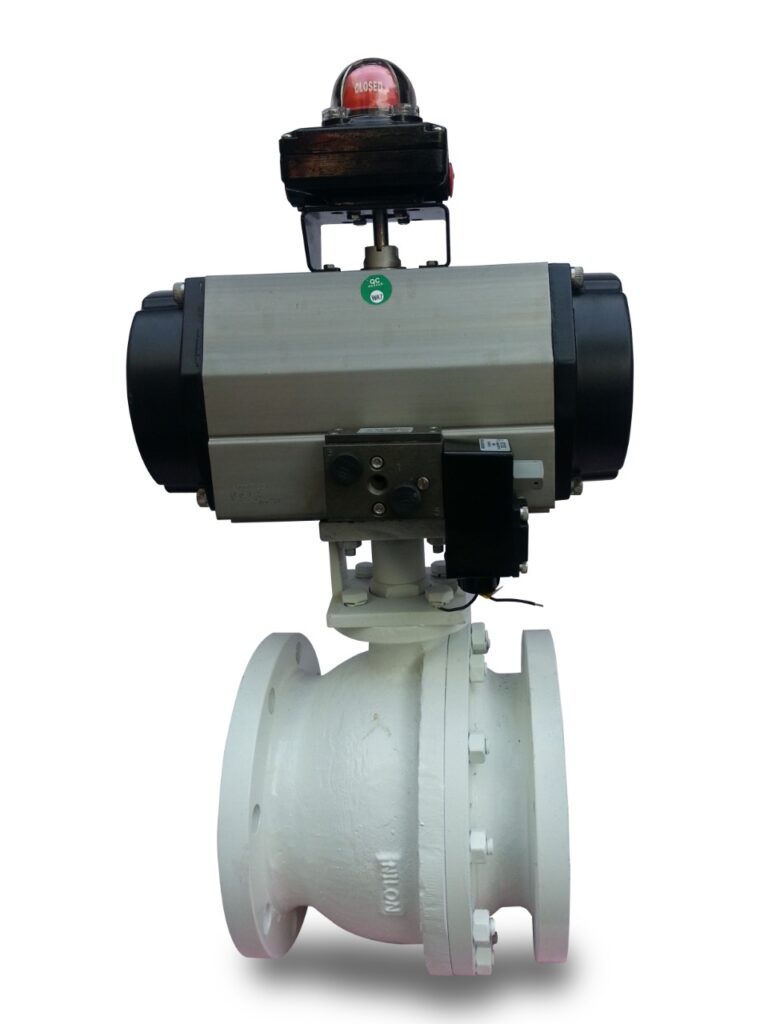

Nilon’s robust design including Remote Operated Valves, Motor Operated Valves and Pilot Operated Valves ensures, it can withstand the demands of transporting oil and gas efficiently. Nilon’s reputation for state-of-the-art quality has led to its accreditation as one of the top 10 valve manufacturers in India.

Full-Port Ball Valves

Design and Functionality

Full-port ball valves, also known as full-bore valves, are designed to provide an unobstructed flow path. When fully open, the diameter of the valve matches the diameter of the connected pipeline. This design minimizes pressure drops and ensures efficient fluid flow.

One of the key advantages of Nilon full port ball valves is their ability to maintain minimal pressure differences across the valve. This feature reduces the risk of cavitation, a phenomenon that can damage piping systems over time. The straight flow path also minimizes friction, making these valves ideal for applications where maintaining high flow rates is critical.

Compared to reduced-port valves, full-port valves offer less resistance to fluid flow. This results in negligible pressure drops when the valve is open, ensuring optimal performance in demanding systems. However, their advanced design and material requirements often make them more expensive than other types of valves.

Applications

Nilon’s Full-port ball valves are widely used across industries due to their efficiency and reliability. Their ability to handle high pressures and maintain consistent flow makes them indispensable in several sectors.

Here are some industries and processes that benefit most from full-port ball valves:

• Oil and Gas: Manage the flow of crude oil and natural gas under high pressures.
• Water and Wastewater Management: Ensure reliable flow control in distribution systems.
• Chemical and Pharmaceutical: Safely control reactive materials in sensitive processes.
• Food and Beverage: Maintain hygienic flow control for liquids and gases.
• Power Generation: Regulate essential fluids in energy systems.
• Agriculture: Support irrigation systems with efficient water flow.

If your system prioritizes efficiency and durability, full-port ball valves are a reliable and cost-effective solution in the long run.

Reduced-Port Ball Valves

Design and Functionality

Nilon reduced-port ball valves, also known as standard-port valves, feature a smaller bore size compared to the connected pipeline. This design creates a slight pressure drop and reduces flow efficiency. However, it also makes these valves more compact and cost-effective. Nilon reduced-port ball valves is ideal for systems where a minor pressure drop is acceptable and budget constraints are a priority.

The smaller bore size of reduced-port ball valves results in certain limitations compared to full-port valves. These include:

• Potential flow restrictions due to the narrower streamway.
• Increased friction and pressure drop, which can lead to higher energy loss.

Despite these drawbacks, reduced-port ball valves excel in applications where high flow capacity is not critical. Nilon reduced-port ball valves compact design and affordability make them a practical choice for many industries.

Applications

Reduced-port ball valves are widely used in systems where cost savings and space efficiency are more important than maximum flow capacity. You will often see them in applications that can tolerate a slight reduction in flow efficiency.

Here are some common uses:

1. HVAC Systems: Control fluid flow in heating and cooling systems without requiring full-bore capacity.
2. Water Distribution: Manage water flow in residential and commercial pipelines where minimal pressure drops are acceptable.
3. Chemical Processing: Handle non-critical fluid transfer processes in chemical plants.
4. Agriculture: Support irrigation systems that do not demand high flow rates.

Multi-Port Ball Valves

Design and Functionality

Nilon Multi-port ball valves are designed to handle complex flow patterns with ease. These valves feature multiple ports, typically three or four, allowing you to control the direction of fluid flow in various ways. Nilon Multi-port ball valves versatility makes them ideal for diverting or mixing applications.

Key features of multi-port ball valves include:

• Versatile flow plans that allow for efficient mixing or diverting.
• A four-seat design that enables the valve to function as a shutoff valve with simple adjustments.
• Locking handles that provide secure operation at multiple angles, giving you precise control over flow direction.
• Non-trans flow designs that prevent product mixing during position changes.

The ability to customize flow paths makes these valves highly adaptable. Whether you need to direct flow between multiple outlets or mix fluids, multi-port ball valves offer a reliable solution.

Applications

Nilon Multi-port ball valves are commonly used in industries that require flexible flow-routing solutions. Their unique configurations, such as T-port and L-port designs, make them suitable for a wide range of applications.

Here are some common configurations and their uses:

• 3-Way T-Port: Allows flow in multiple directions simultaneously or directs flow between three different outlets.
• 3-Way L-Port: Directs flow between two outlets but does not allow simultaneous flow to all ports.
• 4-Way Valves: Offers versatile flow plans for diverting or mixing applications.

Nilon Multi-port ball valves are often used in water treatment systems, food and beverage processing, and chemical distribution. Their ability to reduce the need for additional valves and fittings makes them a cost-effective choice. If your system requires efficient flow control with minimal components, Nilon multi-port ball valves are an excellent option.

Side Entry Ball Valve

Design and Functionality

Nilon Side entry ball valves are a popular choice for industrial applications due to their compact horizontal design. These valves consist of three main components: the body, the ball, and the seats. The ball is housed within a horizontally split body, which allows for easy assembly and maintenance. This design makes Nilon side entry ball valves highly efficient and user-friendly.

Key features of Nilon side entry ball valves include:

• Durable seals and seats that ensure leak-tight performance under extreme conditions.
• Robust construction, making them suitable for larger pipeline systems.
• Excellent handling of high-pressure and high-temperature applications.

When compared to top entry ball valves, side entry valves offer several advantages:

These valves are particularly effective in demanding industries where reliability and durability are critical. Their ability to handle extreme conditions makes them a preferred choice for many engineers.

Applications

Nilon’s Side entry ball valves are widely used across industries due to their versatility and robust design. Their ability to handle high pressures and temperatures makes them indispensable in several sectors.

Here are some common applications:

1. Oil and Gas: Control the flow of crude oil and natural gas in large pipeline systems.
2. Petrochemical: Ensure leak-tight performance in high-pressure environments.
3. Power Generation: Regulate the flow of steam and other high-temperature fluids.
4. Water Treatment: Manage the flow of water in large-scale treatment plants.

Top Entry Ball Valve

Design and Functionality

Nilon Top entry ball valves are designed with a single-piece body structure, allowing for easy access to internal components. This vertical alignment of parts ensures optimal flow and simplifies maintenance. Unlike side entry valves, which require disassembly from the pipeline, top entry valves enable inline servicing. This feature reduces downtime and enhances operational efficiency.

Key structural differences between top entry and side entry ball valves include:

Top entry valves are often made from durable materials like stainless steel or carbon steel. These materials provide high resistance to corrosion and extreme conditions, making the valves suitable for demanding environments. The top bonnet design allows technicians to quickly access the ball and seats, facilitating efficient repairs or replacements.

Applications

Nilon’s top entry ball valves are used in industries where ease of maintenance and reliability are critical. Their ability to handle high pressures and temperatures makes them suitable for a wide range of applications.

Here are some common uses:

• Oil and Gas: Manage the flow of crude oil and natural gas in pipelines.
• Chemical Processing: Control the movement of corrosive fluids in chemical plants.
• Power Generation: Regulate steam and other high-temperature fluids in energy systems.
• Water Treatment: Ensure efficient flow control in large-scale treatment facilities.

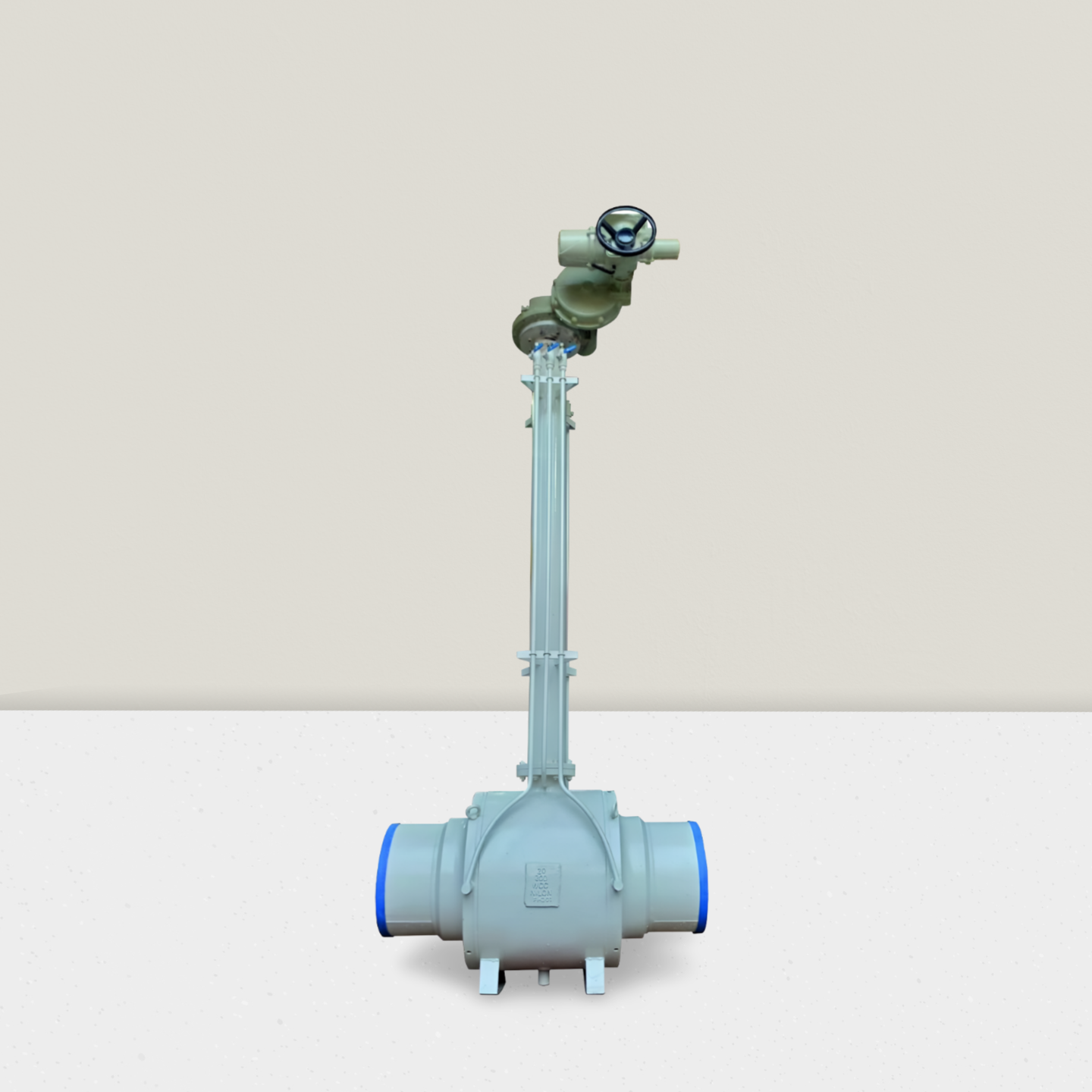

Fully Welded Ball Valve

Design and Functionality

Nilon Fully welded ball valves are known for their robust construction and exceptional performance in demanding environments. These valves are crafted from a single piece of metal, which enhances their strength and eliminates external connections. This design reduces the risk of corrosion, making them ideal for harsh conditions such as underground installations or high-pressure systems.

Key characteristics of Nilon fully welded ball valves include:

• Durability: The single-piece construction ensures superior strength and reliability.
• Leak Prevention: Excellent sealing capabilities prevent leakage, even when handling hazardous substances.
• Corrosion Resistance: The absence of external joints minimizes exposure to corrosive elements.
• Low Maintenance: With fewer components, these valves require less upkeep, saving time and costs.
• Efficient Flow Control: A streamlined flow path reduces pressure drops, ensuring smooth operation.

These valves also excel in high-pressure and high-temperature applications. The welded construction eliminates potential leak paths, enhancing safety and reliability. However, regular cleaning and lubrication are essential to prevent dirt build up and ensure smooth operation.

Applications

You will find fully welded ball valves in industries where safety, durability, and efficiency are critical. Their ability to handle extreme conditions makes them suitable for a wide range of applications.

Here are some common uses:

1. Oil and Gas: Control the flow of crude oil and natural gas in high-pressure pipelines.
2. Chemical Processing: Safely manage hazardous substances in corrosive environments.
3. Power Generation: Regulate steam and other high-temperature fluids in energy systems.
4. Water Treatment: Ensure reliable flow control in large-scale treatment plants.
5. Underground Installations: Provide secure and leak-proof solutions for buried pipelines.

Nilon Valves is recognized as one of the top 10 valve manufacturers in India, owing to our unwavering commitment to superior design, exceptional quality, and competitive pricing.

Our adherence to stringent industry standards, including API 6D and API 600 certifications, coupled with our ISO 9001 compliant manufacturing processes, ensures that our valves consistently meet and exceed customer expectations.
